VBA not dead, yet.

Ivan Bondarenko November 26, 2019 1 Comment
excel access vba visual basic

VBA, from what I see, is still used here and there.

Before Power Query had come to Excel I used mainly VBA macros to perform data cleansing and transformation. Hours of coding…

Now I can’t believe I had to fight with IT department to get Power Query addin installed (when it was a standalone add-in. Now it is a built-in part of modern Excel).

Long story short. Now it is Power Query that helps me with data transformation, cleansing, and consolidation.

I built several dozens of workbooks that transform and consolidate data from various sources.

Once extraction and transformation problem is solved comes another thing – how to automate update of all those workbooks? Obviously, I don’t want to open each manually and hit Refresh button every day.

Using VBA, I developed a solution that helps me to update Excel workbooks automatically on schedule – check https://excel.city/excel-automation/ if interested how I do this.

Why not to schedule in Power BI?

“What the hell?” – one may ask: “Create Power BI datasets, schedule refresh in Power BI service, use Gateway when needed, and voila”.

That’s in theory.

Firstly, we need to keep in mind that some organizations prefer to store everything within corporate network only.

Secondly, Excel still can handle more scenarios than Power BI. Or maybe not more, but many scenarios, that Power BI can’t perform. Due to Excel’s extensibility with add-ins and embedded programming language – VBA (Visual Basic for Applications).

Thirdly, far not everything is stored in the databases and accessible from Power Query – the main engine used to pull data to Power BI data models.

Excel add-ins and VBA help to fill that gap quite often for me.

As an example, in Excel I can dynamically change “Named Range” parameters for Power Query queries using formulas or via VBA.

Or, let’s say, you need to pull data sitting in SAP and for some reason not available in corporate BI system – here comes in handy SAP GUI scripting, which can be executed in Excel via VBA.

In the end, through many years, BI solutions come and go. Excel stays!

And if you want Excel to become even better, post your ideas or vote for existing ones at http://excel.uservoice.com.

Notable Ideas

Dear reader, using an opportunity, I’d like to ask you to take a look at the following ideas for VBA improvement.

Vote if feel it will be useful for you too.

  • RefreshAll method has to be improved – vote here
  • SaveCopyAs for some reason doesn’t save file to OneDrive and SharePoint – vote here
  • Authentication to SharePoint should not be a problem in VBA – vote here

VBA Trends on Google

What do we know about popularity of Excel, VBA and Access around the globe – let’s ask Google.

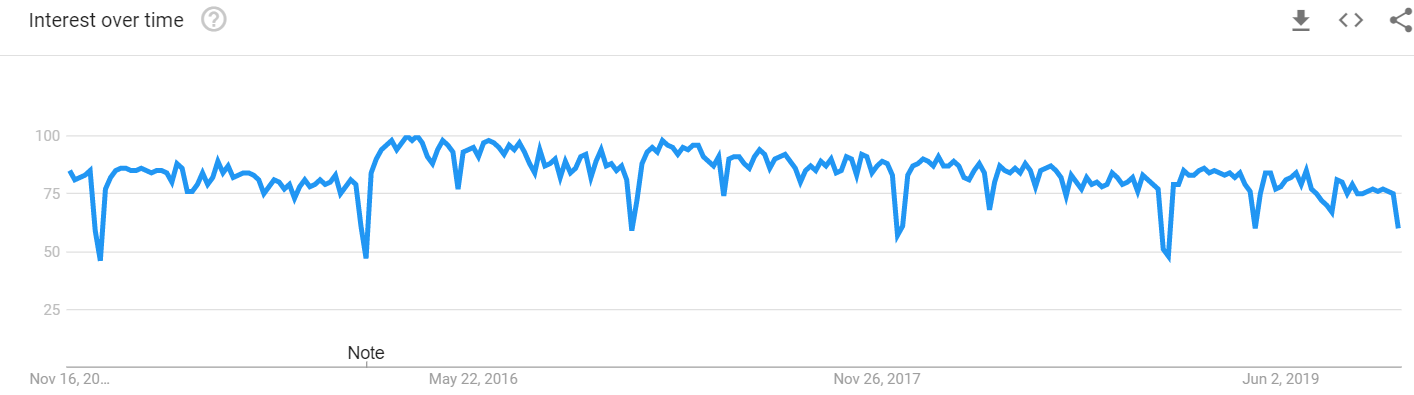

Google Trends worldwide for VBA – despite high interest it is gradually declining

Interest over time Nov 16, 20_ O May 22. 2016 Nov 26, 2017 Jun 2, 2019

Considering popularity of idea to introduce Python to Excel it is probably worth to learn Python. However, at the time of writing, Excel has only VBA as embedded scripting language.

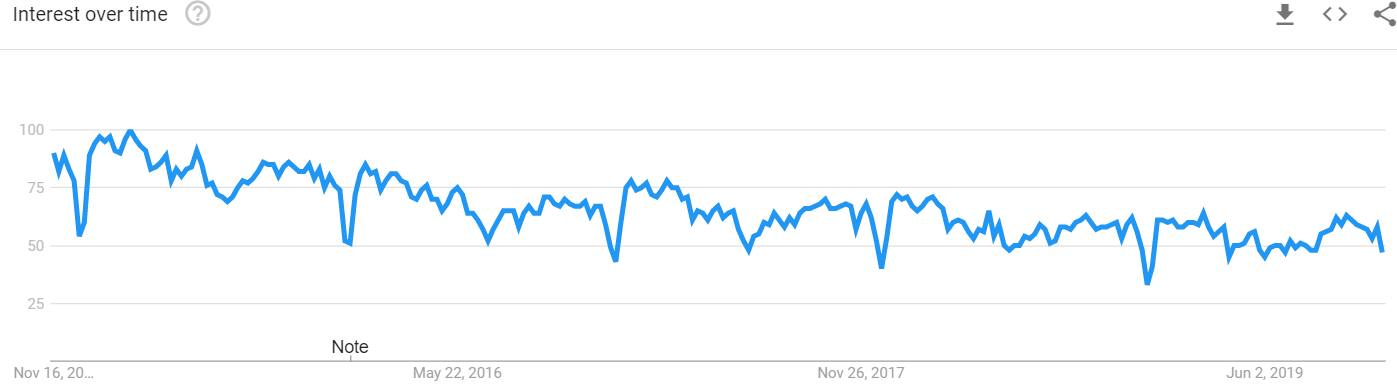

VBA in United States – slightly declining from 2016

Interest over time Nov 16.20... O Note May 22, 2016 Nov 26.2017 Jun 2, 2019

Excel and Access Trends

Excel and Access are probably two the most important “containers” of VBA code. So I decided to check what’s happening with interest to these Microsoft products

Microsoft Excel in United States – steady since 2016

Iterest over time 2019 50 Nov 26.2017 25 May 22,

However, Worldwide it is gradually declining

Interest over time Jun 2019 75 Nov 26.2017 Note May 22 2016

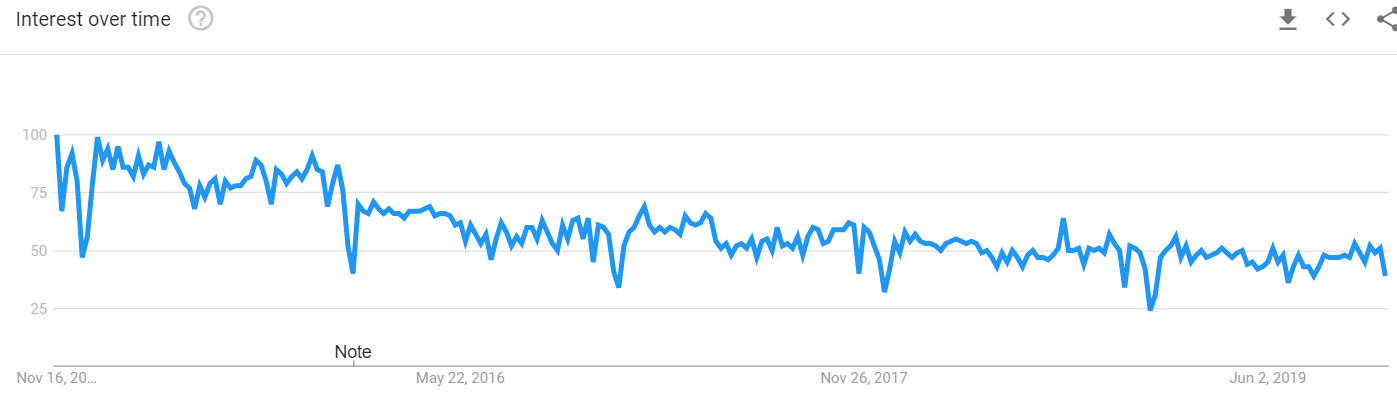

Interest to Microsoft Access in United States is decreasing over time

Interest over time Nov 16, 20... O Note May 22. 2016 Nov 26, 2017 Jun 2, 2019

Very similar – Microsoft Access Worldwide

Interest over time Nov 16, 20_ May 22, 2016 Nov 26, 2017 Jun 2, 2019

If you are still using Microsoft Access there must be a good reason for that.

Afterword

Clearly, VBA is not the hottest topic nowadays and it definitely requires modernization to stay competitive. However, even in current form it is still widely used.

To be honest, maybe simpleness of built-in IDE (not so many bells and whistles as in VS Code / Visual Studio) makes it easier to understand and accept by a common folk.

Does it worth to invest time in learning VBA, Excel or Access?

This I can’t tell you. All depends on your situation.

However, automation of tedious tasks in Excel has never been a bad skill.

Filter Excel Function CUBEVALUE Connected to Power BI

Ivan Bondarenko November 26, 2018 No Comments
cubevalue cubeset formula

You might know that we can connect Excel to Power BI using “Analyze in Excel” feature.

If this is something new for you – check out following video (3 min)

By default, after clicking on “Analyze in Excel” you get Excel file with Pivot Table connected to Power BI.

There you can add rows, columns, slicers – everything as usual.


But what if Pivot Table is not what you need?

What if you have pixel perfect dashboard which you need to fill with CUBEVALUE formulas (or maybe you use Think Cell addin)?

And what if you want dropdown list of values in cell instead of slicers (or want filter to be generated via formula)?

Let’s check what we can do.

CUBEVALUE formulas

The easiest way to get CUBEVALUE formulas instead of Pivot Table is to convert Pivot Table to Formulas


That action deletes Pivot Table and replaces all its cells with functions CUBEMEMBER…




…and CUBEVALUE


As you may see, CUBEVALUE is referencing to a Slicer with countries and a cell with a CUBEMEMBER function.

Replace single value slicer with a cell

Everybody likes slicers, me too. However, in certain scenarios it is better to have a cell with value instead.

Why?

(more…)

Tracking expenses using Excel and MS Flow

Ivan Bondarenko October 24, 2018 4 Comments
tracking expenses

Do you track your personal/family expenses? If yes, I bet you use a specific software or service for this.

I personally think, there is nothing better than a simple Excel workbook for that task. It allows you to stay as flexible as you want, as simple or as complex as you want.

You can use Power Query to pull data from csv dumps from your bank accounts or currency exchange rates from your favourite financial web site, use Excel formulas to convert currency, Pivot Tables and charts to analyse and visualize data etc.

In this post you will see how you can enter data to your Excel spreadsheet with expenses from your mobile phone.

(more…)

Shift cells up/down in same column in Power Query

Ivan Bondarenko March 14, 2017 3 Comments

In my previous post I wrote about one interesting technique used by my colleague Zoltán Kaszaki-Krsjak.

Categoty_tmp = Table.AddColumn(Buffer, "Category_tmp", each Buffer[Category]{[ID2]}?),
// It helps to shift values of column [Category] one row upwards.

It is a trick that you most probably will not use in any of your solutions. However, worth to know how it works and how to do this without adding new columns.

“each Buffer[Category]{[ID2]}?” is just a function, so we can combine it with methods described in one of my posts (Transform Column Using Custom Function).

Here is the code.

let
Source = Excel.CurrentWorkbook(){[Name="Table1"]}[Content],
#"Duplicated Column" = Table.DuplicateColumn(Source, "Category", "Method1"),
#"Duplicated Column1" = Table.DuplicateColumn(#"Duplicated Column", "Category", "Method2"),
#"Duplicated Column2" = Table.DuplicateColumn(#"Duplicated Column1", "Category", "Method3"),
Buffer = Table.Buffer( #"Duplicated Column2" ),

Method1 = Table.FromRecords( Table.TransformRows( Buffer, each [Index = [Index],
    Category = [Category],
    Method1 = Buffer[Method1]{[Index]}?,
    Method2 = [Method2],
    Method3 = [Method3] ] ) ),

Method2 = Table.FromRecords( Table.TransformRows( Method1, (row) =>
    Record.TransformFields( row,
    {"Method2", each Buffer[Method2]{ row[Index] }? } ) ) ),
    // method offered by Miguel Escobar in comment to previous post

Method3 = Table.ReplaceValue(Method2, each [Method3], each Buffer[Method3]{[Index]}?, Replacer.ReplaceValue, {"Method3"})
in
Method3

File with methods is here.

But which method is faster?

(more…)

Bar-Mekko chart in Excel with Power Query

Ivan Bondarenko February 13, 2017 3 Comments

Seems, Excel charts is an area that till now wasn’t considered in blogs as a target for Power Query application (Get & Transform in Excel 2016).

Nevertheless, PQ can replace some VBA solutions and make your workbooks macro-free.

In far 2015 my colleague Zoltán Kaszaki-Krsjak shared with me a very good example of how Power Query can help with generation of specific tables for specific charts, which are widely used in our organization.

Idea to write a blog post about this technique became dusty in me OneNote, and probably would wait more if only Jon Peltier hadn’t attracted my attention to this topic again by his recent post.

Sample workbook contains a solution for Bar-Mekko chart (or “variable width column chart”)


Such chart allows to easily see share of categories, growth or absolute value. Can be used to compare market segments or productivity of departments / subsidiaries. Red line in this case shows average growth – another small but important detail.

Interested how to build it?

(more…)

Query folding and dynamic parameters in SQL Queries in Power Query

Ivan Bondarenko July 17, 2016 2 Comments

Before you start reading this article, I recommend you to go through very good post on Ken Puls’s blog – Pass Parameters to SQL Queries.

If it is fine for you to use native queries to database then most probably scenario described below is not so interesting for you.

Here I’ll talk about workaround allowing to use query folding and pass parameters in Power Query without building of native SQL query.

Level: intermediate

Task definition

Generate N workbooks with data models populated with limited data scope.

Then each workbook will be shared with certain group of people, that allowed to see only relevant set of data (e.g. department OPEX of particular subsidiary).

This is dictated by fact, that if you share Excel workbook with someone – user immediately has access to all info inside data model. So, I cannot create one common data model and hide slicer somewhere with activated department. I must prepare separated workbooks.

Conditions

Data: Table with millions of records in SQL database – main data source for report (query folding required for obvious reasons)

Tools: Excel + Power Query + PowerPivot

Support data: table in Excel, defining datasets – data scopes, let’s call it Control Table

(more…)

Power Query: Xlsb vs Xlsx

Ivan Bondarenko June 1, 2016 9 Comments

Recently I helped my colleague with a report. The task was to consolidate data from multiple Excel files, each contains 100k-500k rows. Hence, size of each Excel file is relatively big.

I proposed to use xlsb to store those files. One file per month, report needs R24m, so 50 MB is less than 150 MB.

In the end I finished with deep analysis what is better as Excel-files database for Power Query – XLSB or XLSX.

Resume

For PQ solutions use XLSX instead of XLSB

PQ from XLSX twice faster than from XLSB

Engine handling XLSB from time to time return error – cannot read file

“UseHeaders” parameter of Excel.Workbook function works differently for xlsx and xlsb

If sheet and table names are equal in Excel workbook – Navigator generates unique name of object.

If you interested how I revealed all this – continue reading.

(more…)

Several ways of data extraction from SAP Business ByDesign

Ivan Bondarenko April 9, 2016 5 Comments

There are several reasons to extract data from corporate ERP system.

First one and the most important – reporting. Nicely visualized data, usually pre-calculated using specific logic before. We all want to see beautiful reports.

Second, I think, is a data transfer to: BI system(s), DWH etc. Maybe for some companies this is a first priority instead of reporting.

Third, rare, but happens in my practice – data migration due to system “end-of-life”. Yes, this happens. What to say? In a moment I’m involved in such project, second in my practice.

I would like to share my experience. Hope it will simplify life of many other reporting specialists working with SAP Business ByDesign.
First of all, basic ways of getting data:
(more…)

Xlsb vs Xlsx PowerPivot model

Ivan Bondarenko January 7, 2016 No Comments

I bet over the Internet can be found number of posts with comparison of workbook size with different formats. However, nothing is better than own data :).

Assume that we have an Excel file with quite big amount of data

~250k rows


As we already know XLSB format makes file size much smaller than XLSX


But what if we load data into Data Model of empty workbook – will it be smaller than xlsb?

To check this I created new Excel workbook, went to PowerPivot tab and opened Data Model window


I need import from Excel

It is stored under “From Other Source” – scroll down to the end


Browse for my source file (I took xlsx as a source)


On the next step I can make “Preview and Filter” to exclude unnecessary data.

You may see checkboxes and usual dropdown filter buttons on columns – like in Excel I can select what I need in filter menu


For this “size challenge” I should take everything. So simply press “Finish” and wait while PowerPivot imports data.

After few seconds we may see result. All rows were imported – no errors.


Result in PowerPivot window


Save this file as xlsx and xlsb


Champion still is XLSB with simple table. PP version size is 11% greater.

And we may see minimal difference between PP versions in different formats. xlsx and xlsb have almost the same size.

And what interesting – xlsb is slightly bigger than xlsx in this case.

Let’s make one more test. Delete text column from initial file. It contains comments for transactions.


This column contains huge number of unique values, in addition it is text – the most heaviest data type.

I repeated same actions with file without text column and result is opposite


PP version has 11% less size than initial “xlsb without text column” and 4.5 times less than initial Without text column.xlsx.

Thoughts that come in my mind after all

Choice where to store data, in Excel table or in PowerPivot, depends on data. There are pros and cons. In the end, PowerPivot don’t lose. Usually data models contain more numbers and less text.

Work with 250k rows in Excel so slow that close to impossible, several SUMIFs will raise a “lack of memory error”. Instead of SUMIFS PivotTables can be used and then GETPIVOTDATA function… All of this currently “old style” modelling that helped us a lot before PowerPivot came – should stay in the past.

What if we want analyze R12M and take 12 files? We will have >1M rows, that is not supported by Excel sheets, BUT PowerPivot supports and still has quick performance of calculation.

Happy modelling in 2016!
